Examples

Here are some examples of diagrams you can create.

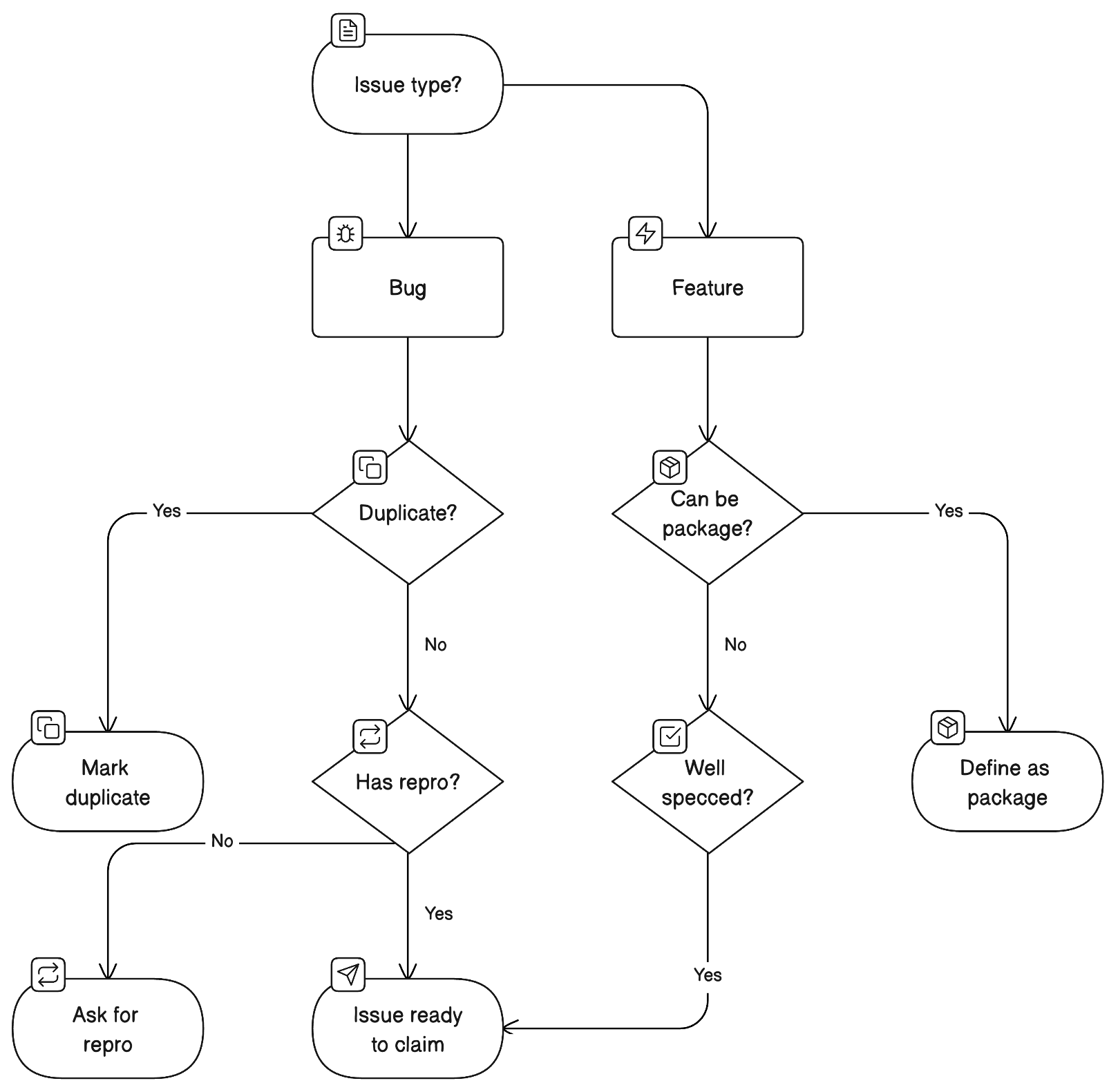

Issue Triage Flow

// Nodes and groups
Issue type? [shape: oval, icon: file-text]

BugPath [color: red] {
  Bug [icon: bug, color: red]
  Duplicate? [shape: diamond, icon: copy]
  Mark duplicate [shape: oval, icon: copy]
  Has repro? [shape: diamond, icon: repeat]
  Ask for repro [shape: oval, icon: repeat]
}

FeaturePath [color: green] {
  Feature [icon: zap, color: green]
  Well specced? [shape: diamond, icon: check-square]
  Can be package? [shape: diamond, icon: package]
  Define as package [shape: oval, icon: package]
}

Issue ready to claim [shape: oval, icon: send]

// Relationships
Issue type? > Bug
Bug > Duplicate?
Duplicate? > Mark duplicate: Yes
Duplicate? > Has repro?: No
Has repro? > Issue ready to claim: Yes
Has repro? > Ask for repro: No
Issue type? > Feature
Feature > Can be package?
Can be package? > Well specced?: No
Can be package? > Define as package: Yes
Well specced? > Issue ready to claim: Yes

Open in Eraser to duplicate.

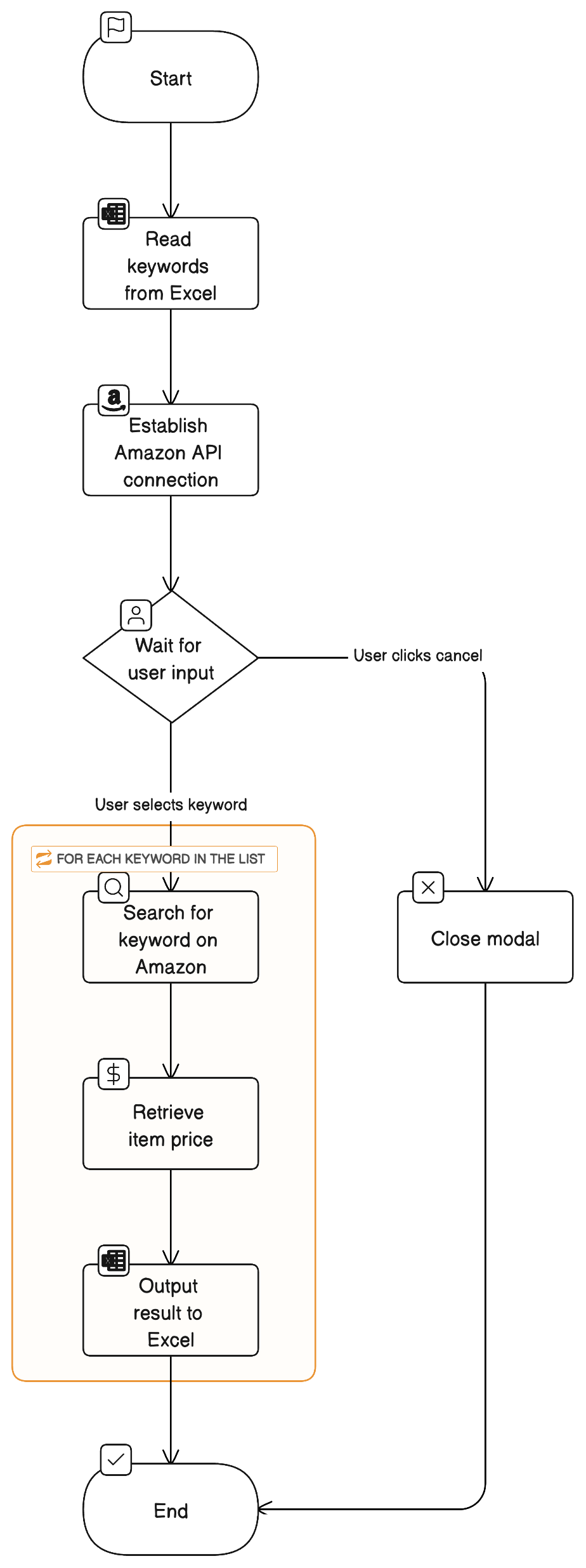

Price Lookup Flow

// Define nodes and relationships "A > B"
Start [shape: oval, icon: flag] > Read keywords from Excel [icon: excel]
Read keywords from Excel > Establish Amazon API connection [icon: amazon]
Establish Amazon API connection > Wait for user input [shape: diamond, icon: user]
Wait for user input > Search for keyword on Amazon[icon: search]: User selects keyword
Search for keyword on Amazon > Retrieve item price [icon: dollar-sign]
Retrieve item price > Output result to Excel [icon: excel]
Output result to Excel > End
Wait for user input > Close modal [icon: x]: User clicks cancel
Close modal > End [shape: oval, icon: check]

// Define Groups
For each keyword in the list [icon: repeat] {
  Search for keyword on Amazon
  Retrieve item price
  Output result to Excel
}

Open in Eraser to duplicate.
