Freeform JSON format

A freeform diagram is stored as JSON – a title and a flat list of elements. It is what Copy as JSON gives you, what git sync writes to .eraserdiagram files, and what you paste onto the canvas or send to the API or MCP server to create a diagram without AI.

{
  "title": "Checkout",
  "elements": [
    { "tag": "Shape", "id": "web", "shape": "rectangle",
      "x": 0, "y": 72, "width": 150, "height": 60,
      "color": "purple", "icon": "monitor",
      "texts": [{ "text": "Web app" }] },
    { "tag": "Group", "id": "backend",
      "x": 220, "y": 0, "width": 400, "height": 200,
      "color": "blue",
      "title": { "text": "Backend", "icon": "server" } },
    { "tag": "Icon", "id": "api", "icon": "node", "size": "md",
      "x": 280, "y": 80, "containerId": "backend",
      "texts": [{ "text": "API" }] },
    { "tag": "Icon", "id": "db", "icon": "postgres", "size": "md",
      "x": 520, "y": 80, "containerId": "backend",
      "texts": [{ "text": "Postgres" }] },
    { "tag": "Relationship", "from": "web", "to": "api",
      "label": "HTTPS" },
    { "tag": "Relationship", "from": "api", "to": "db", "label": "SQL" }
  ]
}

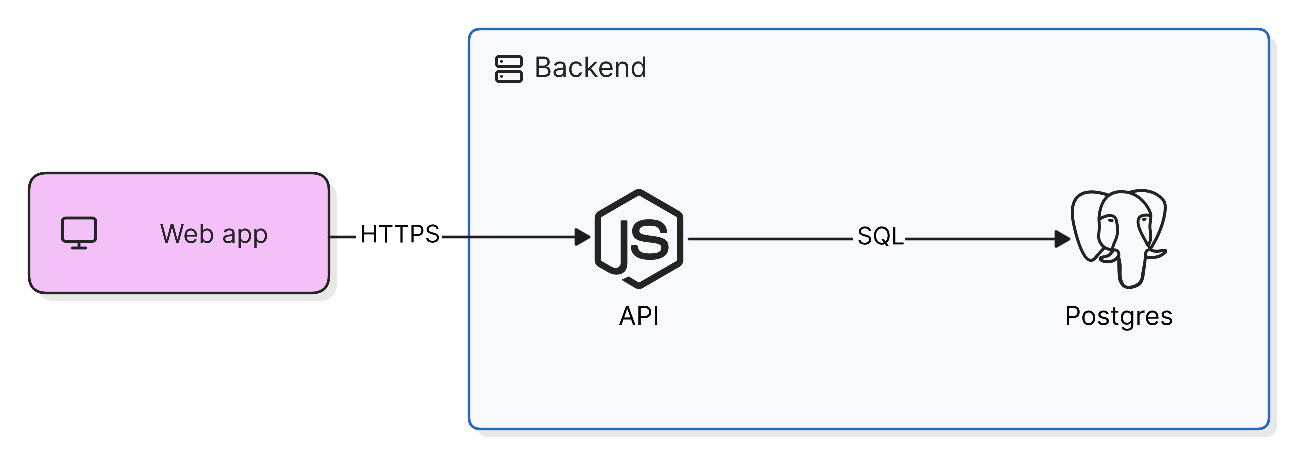

The diagram rendered from the JSON above: a purple Web app shape connected by HTTPS to a Node API icon inside a Backend group, which connects by SQL to a Postgres icon.

Elements

Every element has a tag. Shapes, icons, text, groups and dividers also need an id and an x and y – the top-left corner, in pixels. width and height are optional. A connector joins two elements by their ids in from and to.

Tag	Draws
`Shape`	A shape with text and an optional icon. `shape` is `rectangle`, `oval`, `circle`, `ellipse`, `diamond`, `hexagon`, `parallelogram`, `trapezoid`, `triangle`, `cylinder`, `document` or `star`.
`Icon`	An icon with a caption. `size` is `sm`, `md`, `lg` or `xl`.
`Textbox`	Standalone text, in Markdown.
`Group`	A container with an optional `title`. An element joins it by setting `containerId` to the group’s `id`.
`Divider`	A horizontal or vertical line, with an optional label.
`Relationship`	A connector, with an optional `label`.

Common properties

Property	Value
`texts`	The text on a shape or icon, one entry per line: `[{ "text": "API" }]`
`icon`	An icon name from Icons
`color`	`white`, `yellow`, `green`, `blue`, `purple`, `red`, `orange`, `black`, or any CSS color
`startArrowhead`, `endArrowhead`	`arrow`, `bar`, `dot`, `triangle`, `crowFootSingle`, `crowFootMany`, or `null` for none
`lineStyle`	`solid`, `dashed` or `dotted`
`connectorStyle`	`elbow` (the default), `straight` or `arc`

The quickest way to see any other property is to style an element on the canvas and use Copy as JSON.

Using the JSON

Canvas – paste the JSON onto the canvas to create the diagram.
Git sync – an .eraserdiagram file is the line freeform-diagram, a blank line, then the JSON.
API – send the elements as freeformElements to /api/render/elements, with diagramType set to freeform-diagram.
MCP – pass the JSON as code to manually_create_diagram, with diagramType set to freeform-diagram.
